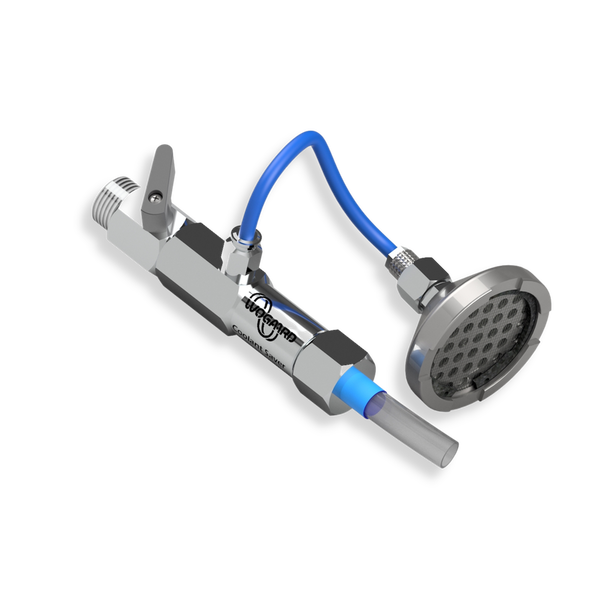

Wogaard Coolant Saver – CNC Coolant Recovery System

Recover, reuse, and reduce coolant waste at source.

The Wogaard Coolant Saver is a simple, highly effective coolant recovery system designed for CNC machining and metalworking environments. It captures valuable soluble cutting fluid directly from swarf bins and returns it automatically to the machine’s coolant tank — reducing fluid consumption, waste disposal costs, and manual handling.

Using your machine’s existing coolant pump, the Coolant Saver requires no external power and can be installed in about 30–45 minutes.

Key Benefits

• Reclaims soluble coolant directly from swarf bins
• Reduces coolant consumption by up to 50%
• Cuts swarf disposal volumes by up to 90%
• Simple installation with minimal maintenance
• Improves shop cleanliness and environmental performance
• No external power required — driven by existing machine coolant pressure

Specifications

• Typical Application: Soluble coolant on machines with conveyors (also works with neat oil up to ~12 cSt with low-pressure pumps)
• Operating Pressure: 1 to 45 bar (not for high-pressure pumps)
• Suction Capacity: Approx. -0.5 to -0.8 bar (through valve control)
• Collection Rate: Approx. 1 Litre/min (varies by machine and coolant)
• Mounting: Floor, waist or head-high pumps up to ~3 m height
• Vacuum Cup Distance: Up to 10 m from the Coolant Saver unit

What’s in the Kit

• Coolant Saver Unit
• Filtered vacuum with 3 m 6 mm PU hose (extendable up to 10 m)
• 1.5 m 12 mm outlet hose
• Fitting kit (½" & ¾" T & straight fittings)
• Step-by-step installation guide + support
• 1-year warranty
