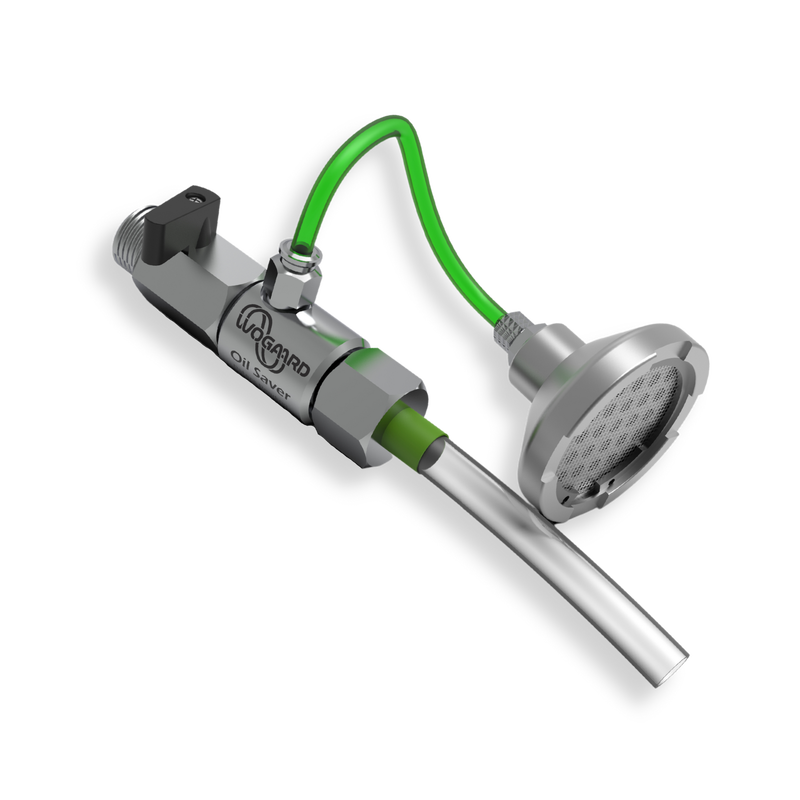

Wogaard Oil Saver – CNC Neat Oil Recovery System

Recover valuable cutting oil and reduce waste at source.

The Wogaard Oil Saver is a robust oil recovery system designed for CNC machines using neat cutting oil — particularly sliding head (Swiss-style) machines. It captures usable neat oil from swarf bins and returns it to the machine’s tank, helping reduce fluid losses, disposal costs, and manual handling.

Like the Coolant Saver, it’s powered by the machine’s own pump and requires no external electricity.

Key Benefits

• Reclaims neat oil directly from swarf bins
• Reduces oil consumption and topping-up frequency
• Lowers disposal costs and manual handling
• Improves housekeeping and environmental performance
• No external power required — powered by machine pump pressure

Specifications

• Typical Application: Neat oil applications on machines with conveyor systems and sliding head lathes
• Recommended Oil Viscosity: Up to 22 cSt under normal pump pressure; up to 32 cSt depending on pump strength
• Operating Pressure: Recommended for low pressure pumps up to 10 bar
• Suction Capacity: Approx. -0.1 bar (valve controlled)
• Collection Rate: Varies with oil viscosity (approximate performance shown during testing)
• Vacuum Cup Distance: Up to 5 m from the Oil Saver unit

What’s in the Kit

• Oil Saver Unit
• Filtered vacuum + check valve with 3 m 6 mm PU hose (extendable up to 5 m)
• 1 m 12 mm outlet hose
• Fittings (1" T & straight fittings for sliding head machines)
• Step-by-step installation guide + support
• 1-year warranty
